Robotik
Robots need to reliably sense their environment for efficiency, effectiveness and safety, whatever the application - ams OSRAM's sensing and illumination technologies are a key enabler.
×
Wir zeigen Robotern die Welt

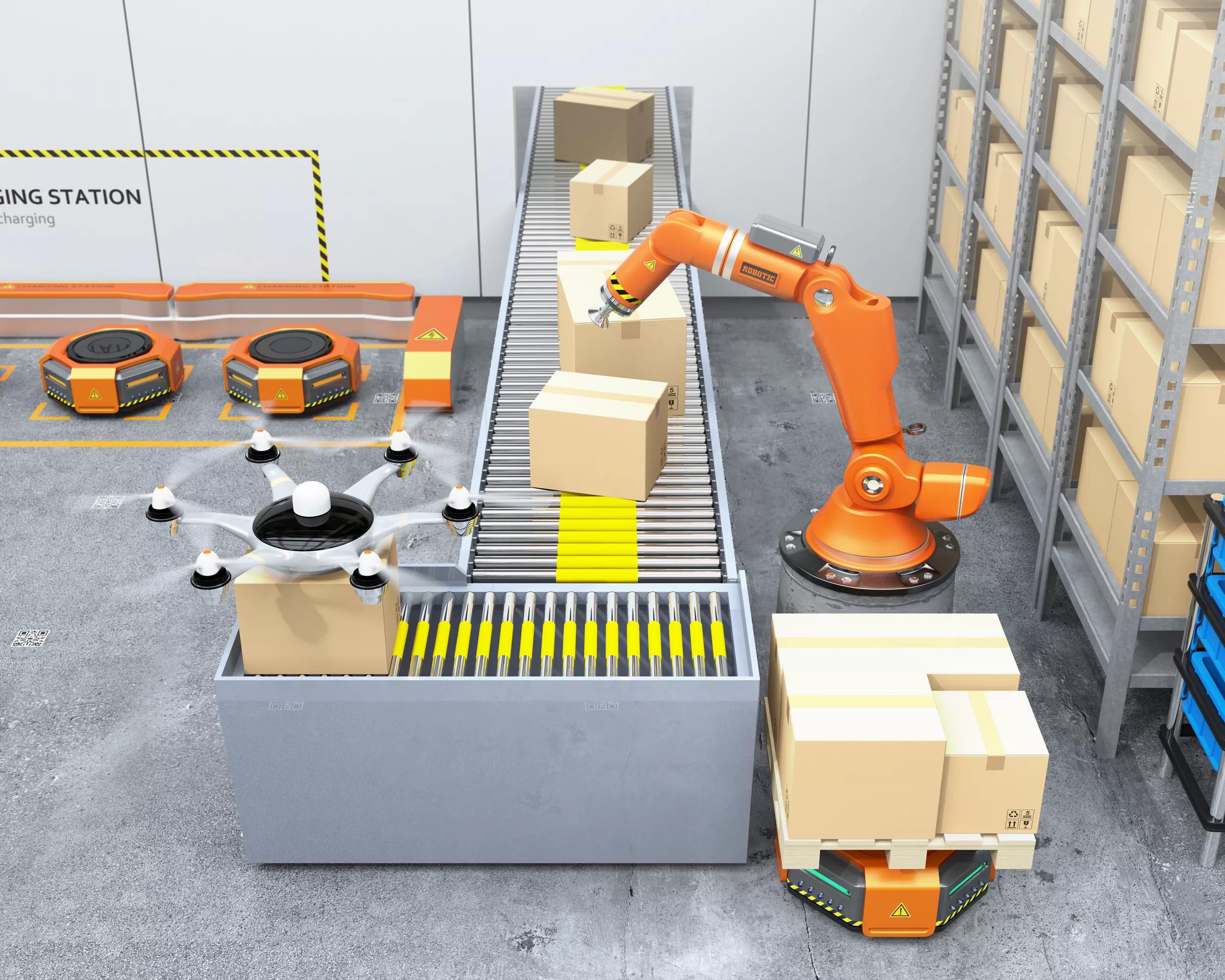

Smart robots play an increasingly important role in industrial automation as well as in private homes. They can take over repetitive as well as dangerous tasks, enabling time and cost savings, safety and flexibility. Smart robotics range from traditional robot arms in production lines (e.g. automotive manufacturers) to mobile robots used in logistics, so-called AGVs (automatically guided vehicles) or AMRs (autonomous mobile robots) to advanced service robots for dedicated functions such as cleaning, inventory monitoring, harvesting and many others. In fact, the biggest fastest growing market is for residential service robots, such as vacuum cleaners and lawnmowers.
ams OSRAM's miniaturized sensing and illumination solutions are the best choice to increase the performance and precision of robots by making them smarter. Our portfolio covers all the critical sensing function for robots, from environment sensing for obstacle detection, collision avoidance and navigation purposes, to high precision positioning control. Battery management systems (BMS) in Li-battery powered devices benefit from our high accuracy I/V/T-sensing products, which enable best in class state-of-charge or battery state-of-health predictions.
×
Stationary robots
Advanced vision and position sensing solutions that enhance the precision, safety, and flexibility of stationary and collaborative robots especially in manufacturing environments.
Mobile robots
Innovative vision and sensing solutions, including VCSEL-based illuminators, global shutter image sensors, and multi-zone time-of-flight modules, enhancing the precision, efficiency, and safety of mobile robots in collaborative environments.
Household robots
Advanced optical and spectral sensing solutions that enhance the precision, efficiency, and reliability of household robots, ensuring robust obstacle detection and optimized cleaning actions.
Ausgewählte Produkte
ams TMF8821 configurable 4x4 multi-zone Time-of-Flight Sensor
The TMF8821 is a direct time-of-flight (dToF) sensor in a single modular package with associated VCSEL. The dToF device is based on SPAD, TDC and histogram technology and achieves 5000 mm detection range. Due to its lens on the SPAD, it supports 3x3, 4x4 and 3x6 multizone output data and a wide, dynamically adjustable, field of view. A multi-lens-array (MLA) inside the package above the VCSEL widens up the FoI (field of illumination). All processing of the raw data is performed on-chip and the TMF8821 provides distance information together with confidence values on its I2C interface.
ams TMF8801 1D Time-of-Flight Sensor
The TMF8801 is a true direct time-of-flight (ToF) sensor system in a single modular package which offers highly accurate depth accuracy detection through a sub-nanosecond light pulse and an antialiasing “stop-watch” method to measure round-trip time of pulse. It provides single zone detection of an object irrespective of the color, reflectivity and texture of the object. The single module with VCSEL emitter offers high dynamic range and detection sensing measurements from 2 – 250 cm distances. The device utilizes highly sensitive SPAD detection with fast compact time-to digital converters to make highly accurate distance measurements within ±5% and is capable of operation in dark environments and in the presence of sunlight. A built-in histogram is featured to detect cover glass and reports an object distances operating with the highest SNR while compensating for dirt and smudges contaminants on a products cover glass to produce artifact free measurement. The histogram delivers dynamic cover glass calibration and crosstalk compensation and background light noise is minimized through on-chip sunlight rejection filters. Data output is through a 1.8V I²C fast-mode communications interface and an integrated micro controller is featured with all algorithms included on-chip with no need for external optics.
ams Mira220
2.2 MP NIR enhanced global shutter image sensor designed for 2D and 3D consumer and industrial machine vision applications. Due to its small size, configurability and high sensitivity both in visual as well as NIR, the Mira220 is well suited for 2D and 3D applications, which include Active Stereo Vision, Structured Light Vision for Robotics and AR/VR. Request full datasheet here
ams BELAGO1.1 Dot Projector
BELAGO1.1 is a proprietary infrared dot-pattern illuminator for stereoscopic imaging and structured light platforms with eye-safety feature. It produces a focus-free, high-contrast dot pattern that algorithms can use to address low-texture situations and achieve high-accuracy depth maps. An additional benefit of the dot pattern is a reduction of the computational load required to perform the depth calculation.The BELAGO1.1 dot-pattern illuminator is provided in a miniature package that is compatible with standard lead-free reflow processes. As such, it can be successfully used onboard of a great variety of 3D sensing platforms, from mobile to IoT to robotics, both for stereoscopic imaging and structured light. BELAGO1.1 emitters project 5k dots, focus-free, in a random pattern at 940nm.
OSRAM BIDOS™ P2433 Q, V105Q121A-940
940 nm Multi-Mode VCSEL Power Array
Designed for Sensor Field of Interest : 60° x 45°
ams TMD3725 Color Sensor Module
The TMD3725 features advanced proximity measurement, color sense (RGBC+IR), and digital ambient light sensing (ALS). The package has been designed to accommodate a “single hole” aperture approach. The slim module incorporates an IR LED and factory calibrated LED driver. The proximity detection feature provides object detection (e.g. mobile device screen to user’s ear) by photodiode detection of reflected IR energy (sourced by the integrated LED). Detect/release events are interrupt driven, and occur when proximity result crosses upper and/or lower threshold settings. The proximity engine features offset adjustment registers to compensate for unwanted IR energy reflection at the sensor. Proximity results are further improved by automatic ambient light subtraction. The ALS detection feature provides photopic light intensity data. The color photodiodes have UV and IR blocking filters and converts photodiode current into dedicated integrating data converters producing 16-bit data. This digital output can be interfaced with a microprocessor where illuminance and color temperature can be calculated to control a displays backlight and chromaticity.
Featured product families
Chip LED for industrial applications
The products are designed for optimized performance out of a very small form factor to realize state of the art solutions. The broad product portfolio addresses various areas inside applications like electronic equipment, gaming, white goods, illumination and backlighting.
FIREFLY™ 0402 for industrial applications
The FIREFLY™ 0402 is designed for use in consumer applications. Due to its low height and optical characteristics it is optimized for flat indirect backlighting.
LED ENGIN LuxiGen™ for industrial applications
High Power UVA LED Portfolio for Industrial UV Curing;
LED ENGIN LuxiGen(R) UVA LED is an ideal solution for industrial UV curing, such as paint, ink, adhesive, resin and others; blacklight for entertainment and counterfeit detection. It features very high flux density in a small footprint, low thermal resistance, with narrow binning on wide wavelength range. These features allow users to create powerful compact fixtures with the ideal wavelength for their applications.
MIDLED™ for industrial applications
The MIDLED offers remarkable high radiant intensity and flexibility for designers, because its package can be used both as a toplooker and as a sidelooker.
Micro SIDELED™ for industrial applications
Flat side-emitting device ideal for compact assembly
Mini TOPLED™ for industrial applications
With its small package size, integrated reflector, homogenous and extremely wide viewing angle it is a perfect product for LCD backlighting, switches, indicators, radios etc.
Multi TOPLED™ for industrial applications
Extremely wide viewing angle, ideal for back lighting and coupling into light guides. Chips can be controlled separately, high signal efficiency possible by color change of the LED.
OSLON™ Signal for industrial applications
OSLON™ Signal LEDs offer cutting edge signaling design solutions with a significantly reduced number of LEDs per signal. They are the perfect fit for traffic lights, aviation, marine, rail, industrial, and transportation or other signaling applications. The tiny ceramic-based high-performance package from ams OSRAM sets new standards in terms of electro-optical efficiency even at high temperatures. Available in various colors and performance classes. The next generation of OSLON™ Signal introduces a new 120° lens design for improved light extraction. Brightness and efficacy improvements are further achieved through implementation of the latest chip technologies and a reflective titanium dioxide casting. This new generation is fully compatible in footprint and solder pad design to the previous generation insuring an easy design in process for this high-performance LED.
PointLED™ for industrial applications
Unlike conventional SMT LEDs, ams OSRAM’s PointLED™ is a round component, capable of through-hole mounting. This means it doesn’t protrude above the surface of the circuit board, making it the ideal choice in all kinds of applications where space is critical. It can also be surface-mounted, making it the ultimate flexible choice of LED.
SMARTLED™ 0603 for industrial applications
SMARTLED™ 0603 – The innovative product joins the successful family of TOPLED™. Invested with the same high quality, its unique features are due to set new standards in product development and design, opening new applications on a new scale.
SYNIOS™ E4014 for industrial applications
Optimized for light guides and backlighting with narrow widths. The combination of silicone resin, volume casting and volume emitter LED chip offers a homogenous radiation pattern.
SYNIOS™ S2222 for industrial applications
Improved color variety for customer-specific lighting solutions for electronic devices using RGBW modules, interior lighting for passenger cabins in trains or airplanes as well as high-quality architectural lighting.
TOPLED™ for industrial applications
ams OSRAM' Power TOPLED™ is a standard product in LED lighting. With our great experience in SMT LED we are able to offer a high quality product for all kind of applications. Within the spectrum of visible and invisible light the TOPLED™ product family offers solutions from backlighting up to basic gesture sensing and illumination in automotive interior applications. The latest product of this well established family ist the SFH 4246R, a new part for narrow space applications in the gesture sensing area.
