Positions- & Winkelsensoren

Berührungslose Positionssensoren von ams OSRAM bieten erstklassige Streufeldfestigkeit, sind besonders langlebig und erfüllen die Anforderungen strengster Sicherheitsnormen.

Positions- & Winkelsensoren für die Automobilindustrie

Innenraumanwendungen für Positions- und Winkelsensoren

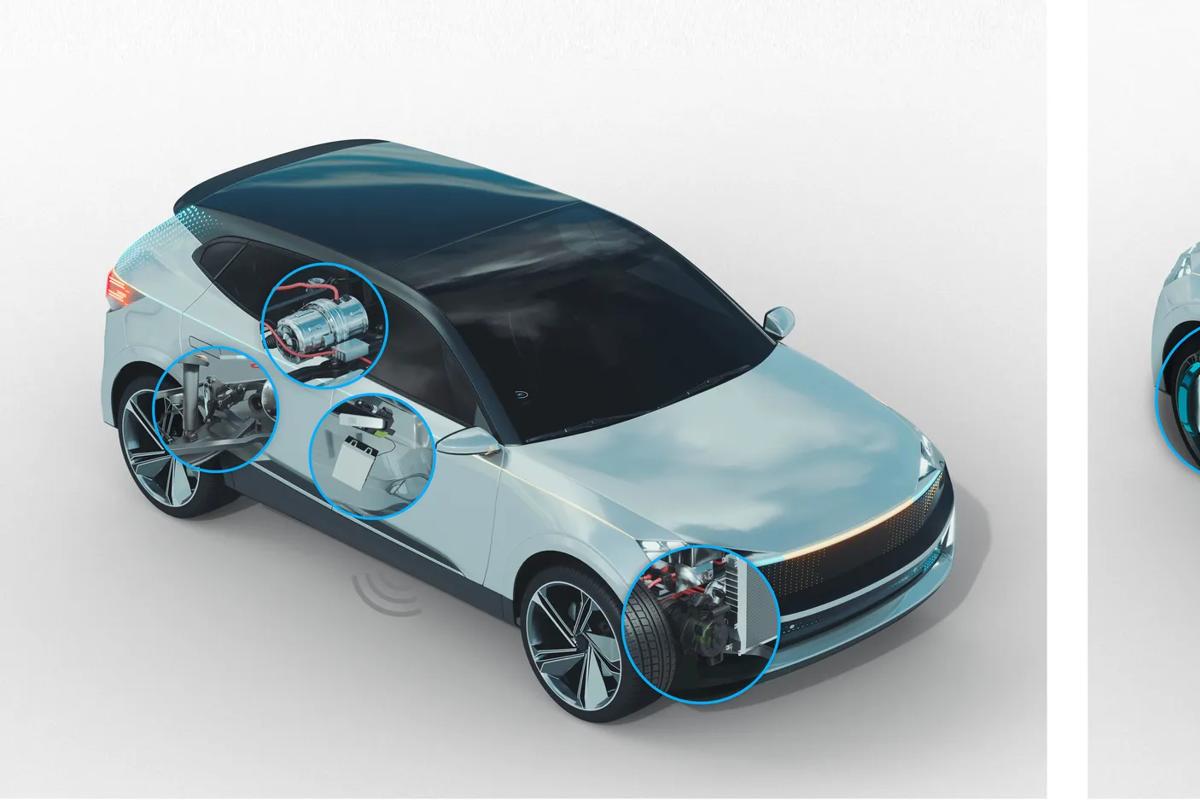

Positions- und Winkelsensoren sind in modernen Fahrzeugen allgegenwärtig: Pedalposition, Bodenfreiheit für aktive Federungssysteme, Drosselklappenstellung, Getriebeposition, Tumbleklappe, Lenkwinkel, Scheinwerfersteuerung, Potenziometer, Schalthebel, Drehschalter, HUD/Spiegelposition und vieles mehr.

Antriebsanwendungen für Positions- und Winkelsensoren

Sowohl bei herkömmlichen Verbrennungsmotoren als auch bei modernen Elektroantrieben werden für viele Anwendungen Positions- und Winkelsensoren benötigt: Fahrmotor von Elektrofahrzeugen, Getriebegeber, Zahnstangenantrieb der elektrischen Servolenkung, elektrische Servopumpe, elektrische Bremsen, Anlasser/Lichtmaschine, aber auch als Ersatz optischer Geber und elektrischer Resolver.

Das Angebot von ams OSRAM

Intelligente und robuste Positionssensoren, ideal für raue Umgebungen: Kraftfahrzeuge werden immer stärker automatisiert und elektrifiziert. Dank ihrer hohen Zuverlässigkeit und uneingeschränkten Zulassung sind Sensoren von ams OSRAM die ideale Lösung für alle Fahrzeuganwendungen. Funktionale Fahrzeugsicherheitsprozesse von ams OSRAM erhöhen die Systemzuverlässigkeit und lassen sich einfach in Fahrzeugsubsysteme integrieren. Redundante Sensoransätze nach ASIL D (gemäß ISO26262) können in Kundenanwendungen problemlos innerhalb der Produktfamilie realisiert werden. Ihre bauartbedingte Streufeldfestigkeit (übertrifft ISO 11452-8) ermöglicht die kostengünstige Integration der Sensoren in kleine und große Kundenprojekte aller möglichen Anwendungsbereiche.
Akkurate und extrem zuverlässige Positionserkennung bei höheren Drehzahlen: Positionssensoren von ams OSRAM spielen eine wichtige Rolle in elektronisch kommutierten Motoren. Präzise Winkelerfassung (0,3° elektrische INL) bei verschiedenen Drehzahlen bis 480.000 U/min und Latenzen nahe Null (DAECTM) erlauben die verschiedensten Anwendungen etwa im Fahrmotor von Elektrofahrzeugen. Positionssensoren von ams OSRAM sind der perfekte Ersatz für optische und elektrische Resolver in Anwendungen aller Art.

Produkt auswählen
×

Ausgewählte Produkte

ams AS5147U - High Resolution Rotary Position Sensor

The AS5147U is a high-resolution redundant rotary position sensor for fast absolute angle measurement over a full 360-degree range. This position sensor is equipped with a revolutionary integrated dynamic angle error compensation (DAEC™) with almost 0 latency at higher rotational speed. For increased signal quality at lower rotational speed, the dynamic filter system (DFS™) reduces transition noise. The robust design of the device suppresses the influence of any homogenous external stray magnetic field. A standard 4-wire SPI serial interface with a CRC protection allows a host microcontroller to read 14-bit absolute angle position data from the AS5147U and to program non-volatile settings without a dedicated programmer. Incremental movements are indicated on a set of ABI signals with a maximum resolution of 16989 steps / 4096 pulses per revolution. Brushless DC (BLDC) motors are controlled through a standard UVW commutation interface with a programmable number of pole pairs from 1 to 7. The absolute angle position is also provided as PWM-encoded output signal. The AS5147U supports embedded self-diagnostics for fulfilling up to ASIL D in safety relevant applications. The device is available in a TSSOP14 Package.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers. More information about Longevity Program
Details und Datenblätter

ams AS5200L Magnetic Rotary Position Sensor

The AS5200L is an easy to program stacked dual die magnetic rotary position sensor with a high-resolution 12-bit I2C or PWM output. This contactless system measures the absolute angle of a diametric magnetized on-axis magnet. This AS5200L is designed for contactless potentiometer applications and its robust design eliminates the influence of any homogenous external stray magnetic fields. The industry-standard I2C interface supports simple user programming of non-volatile parameters without requiring a dedicated programmer. By default the output represents a range from 0 to 360 degrees. It is also possible to define a smaller range to the output by programming a zero angle (start position) and a maximum angle (stop position). The AS5200L is also equipped with a smart low power mode feature to automatically reduce the power consumption. This device is designed for automotive applications and is AEC-Q100 grade 1 qualified. To enable safety-critical applications it has two separate sensor dies in one MLF-16 (5x5) package with wettable flanks.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers. More information about Longevity Program.
Details und Datenblätter

ams AS5116 Position Sensor Sin/Cos Output

The AS5116 is a contactless magnetic position sensor for accurate angular measurement over a full mechanical turn of 360°. Based on the Hall sensor technology, this device has a robust architecture that measures the orthogonal component of the flux density (Bz), over a full-turn rotation. To measure the angle, only a simple two-pole magnet rotating over the center of the package is required. The magnet can be placed above or below the device.The absolute angle measurement provides an instant indication of the magnet’s angular position. The angle information is provided by means of buffered differential sine and cosine voltages. The AS5116 operates at a supply voltage of 5V or 3.3V. The AS5116A is a preprogrammed version of AS5116. It has fixed settings and need no further programming. With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.. More information about Longevity Program
Details und Datenblätter

ams AS5172B High Resolution Position Sensor

The AS5172B is a magnetic position sensor with a high-resolution 12-bit PSI5 output according PSI5 specification Version 1.3 and 2.1.Based on a Hall sensor technology, this device measures the orthogonal component of the flux density (Bz) over a full-turn rotation and compensates for external stray magnetic fields with a robust architecture based on a 14-bit sensor array and analog front-end (AFE). A sub-range can programmed to achieve the best resolution for the application. To measure the angle, only a simple two-pole magnet rotating over the center of the package is required. The magnet may be placed above or below the device. The absolute angle measurement provides an instant indication of the magnet’s angular position. The AS5172B operates up to a voltage of 16.5V and is protected against overvoltage up to +20V. In addition, the supply pins are protected against reverse polarity up to – 18V.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.. More information about Longevity Program.
Details und Datenblätter

ams AS5172E High Resolution Position Sensor

The AS5172 is a magnetic position sensor with a high-resolution 12-bit PSI5 output according PSI5 specification version 1.3 and 2.1.Based on a hall sensor technology, this device measures the orthogonal component of the flux density (Bz) over a full-turn rotation and compensates for external stray magnetic fields with a robust architecture based on a 14-bit sensor array and analog front-end (AFE). A sub-range can be programmed to achieve the best resolution for the application. To measure the angle only a simple two-pole magnet rotating over the center of the package is required. The magnet may be placed above or below the device. The absolute angle measurement provides an instant indication of the magnet’s angular position. The AS5172 operates up to a voltage of 16.5V and is protected against overvoltage up to +20V. In addition, the supply pins are protected against reverse polarity up to – 18V.. More information about Longevity Program
Details und Datenblätter

ams AS5715R inductive motor control position sensor

The inductive motor control position sensor detects the electrical position within one pole-pair of a rotating shaft and can be used for the motor commutation of a brushless DC (BLDC) motor. Based on the inductive sensor technology, this family measures the coupling between an excitation coil (TX) and two receiver coils (RX) via a rotating target. The coils are executed as printed circuit coils and the rotating target is a simple punched metal part. With the correct layout of the coils and the target, both synchronized to the number of pole-pair count of the motor, the IC output is proportional to the electrical angular position within one pole-pair segment with increased resolution and high performance of only 0.3° electrical INL! Due to its flexibility, easy adaption and low overall system costs, this family acts as the perfect resolver replacement and can be used for on-axis as well off-axis applications!More information about Longevity Program
