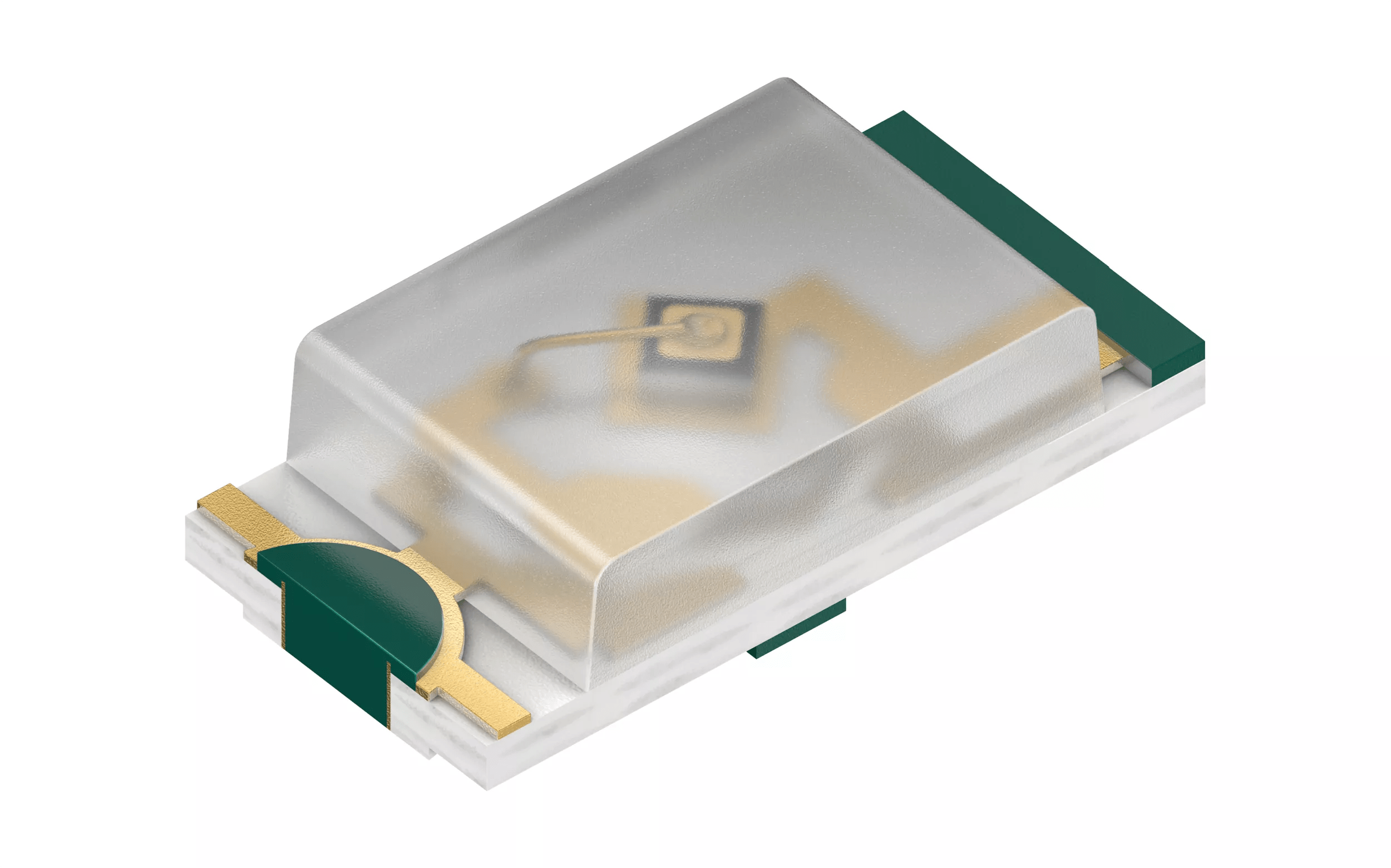

OSRAM SMARTLED™ 0603, KY EELP41.22

OSRAM SMARTLED™ 0603, KY EELP41.22
×

Description

The SMARTLED™ 0603 is the product of choice for status indication and symbol backlighting in electronics. The small package size allows compact designs. The improved corrosion robustness and increased junction temperature range makes the devices from this series suitable for professional industrial equipment and applications.
Datasheet
KY EELP41.22
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Yellow (580-595 nm)
Electrical power
0.04 W
Low
Brightness
ΦV
0.658 lm
IV
0.182 cd
ΦE
1.29 mW
IE
0.357 mW/sr
Beam angle
∢
130 °
∢
130 °
Operating temperature
Top min.
-40 °C
Top max.
105 °C
Dimension
l
1.6 mm
w
0.8 mm
h
0.4 mm
