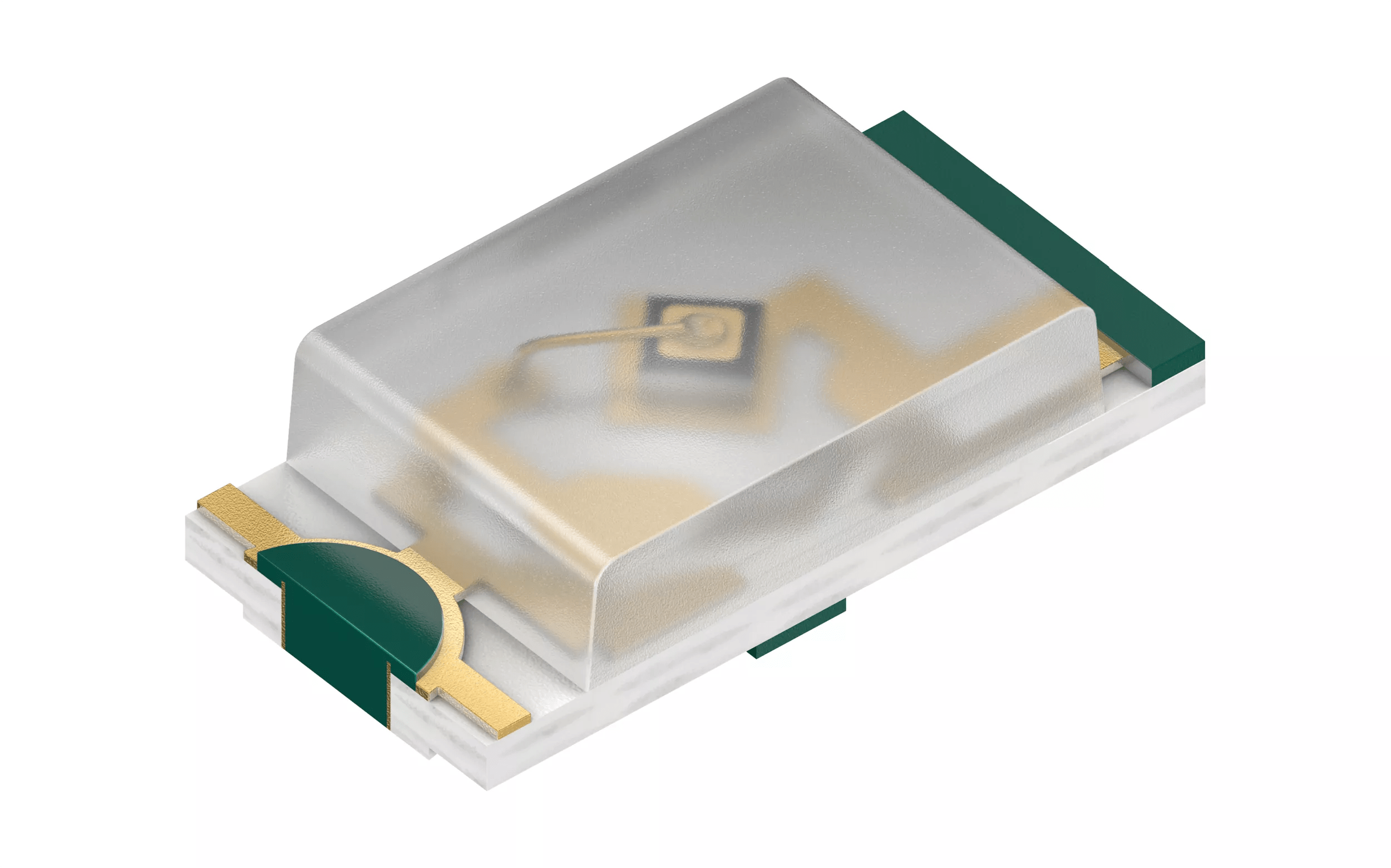

OSRAM SMARTLED™ 0603, KS EELP41.22

OSRAM SMARTLED™ 0603, KS EELP41.22
×

Description

The SMARTLED™ 0603 is the product of choice for status indication and symbol backlighting in electronics. The small package size allows compact designs. The improved corrosion robustness and increased junction temperature range makes the devices from this series suitable for professional industrial equipment and applications.
Datasheet
KS EELP41.22
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Super Red (627-639 nm)
Electrical power
0.039 W
Low
Brightness
ΦV
0.291 lm
IV
0.084 cd
ΦE
2.01 mW
IE
0.581 mW/sr
Beam angle
∢
130 °
∢
130 °
Operating temperature
Top min.
-40 °C
Top max.
105 °C
Dimension
l
1.6 mm
w
0.8 mm
h
0.8 mm
