Details
Parameters
Color of emission
Amber (609-624 nm)
Electrical power
0.3
W
Mid
Brightness
ΦV
26.8
lm
IV
19.8
cd
ΦE
109
mW
IE
80.7
mW/sr
Beam angle
∢
60
°
Operating temperature
Top
min.
-40
°C
Top
max.
125
°C
Dimension
l
3.0
mm
w
3.0
mm
h
2.43
mm
Ordering codes
Downloads
Tools
LightGuide
Calculate the effectiveness of an LED based on a selected light guide by showing the amount of incoupled, reflected and missed light rays.
Product selector
Find the right product.
More OSLON™ SX

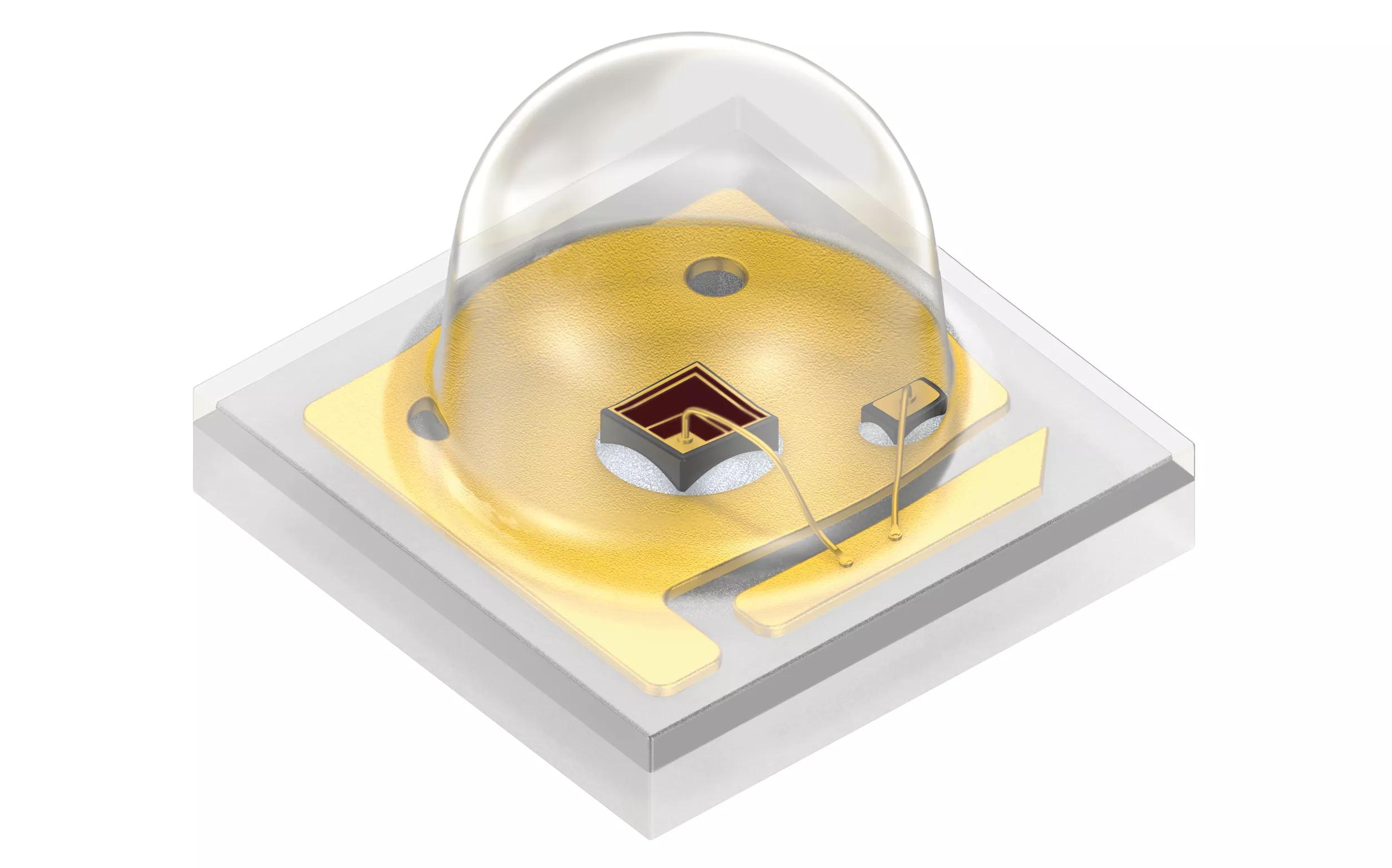

OSLON™ SX – Compact lensed mid-power LED for multiple illumination and signaling applications.
