詳細
特徴
- Configurable, high sensitivity
- Programmable gain and integration time
- 4096x dynamic range by gain adjustment only
- 1mlux detectable illuminance
- Tailored ALS response
- Photopic filter for visible channel
- Independent IR channel
- ALS interrupt with thresholds
- Concurrent flicker and ALS measurement with new simplified readout methodology
- Independently configurable sample time
- Up to 7kHz light flicker detection (14kHz sampling rate)
- FIFO buffer interrupt
- 1.8VDD operation
- Configurable sleep mode
- Interrupt-driven device
- I²C interface up to 1 Mbit/s (Fast mode)
- Digital and analog saturation flags
利点
- Invisible ALS sensing under any glass type
- Integrated light flicker detection
- Low power consumption and minimum I²C traffic
- Integrated status checking for all functions
パラメーター
Function
ambient light sensing
Supply voltage
典型
1.8
V
最小
1.7
V
最大
1.98
V
Interface
input
I²C slave (1MHz)
output
I²C slave (1MHz)
Operating ambient temperature
最小
-30
°C
最大
85
°C
Integrated diffuser
No

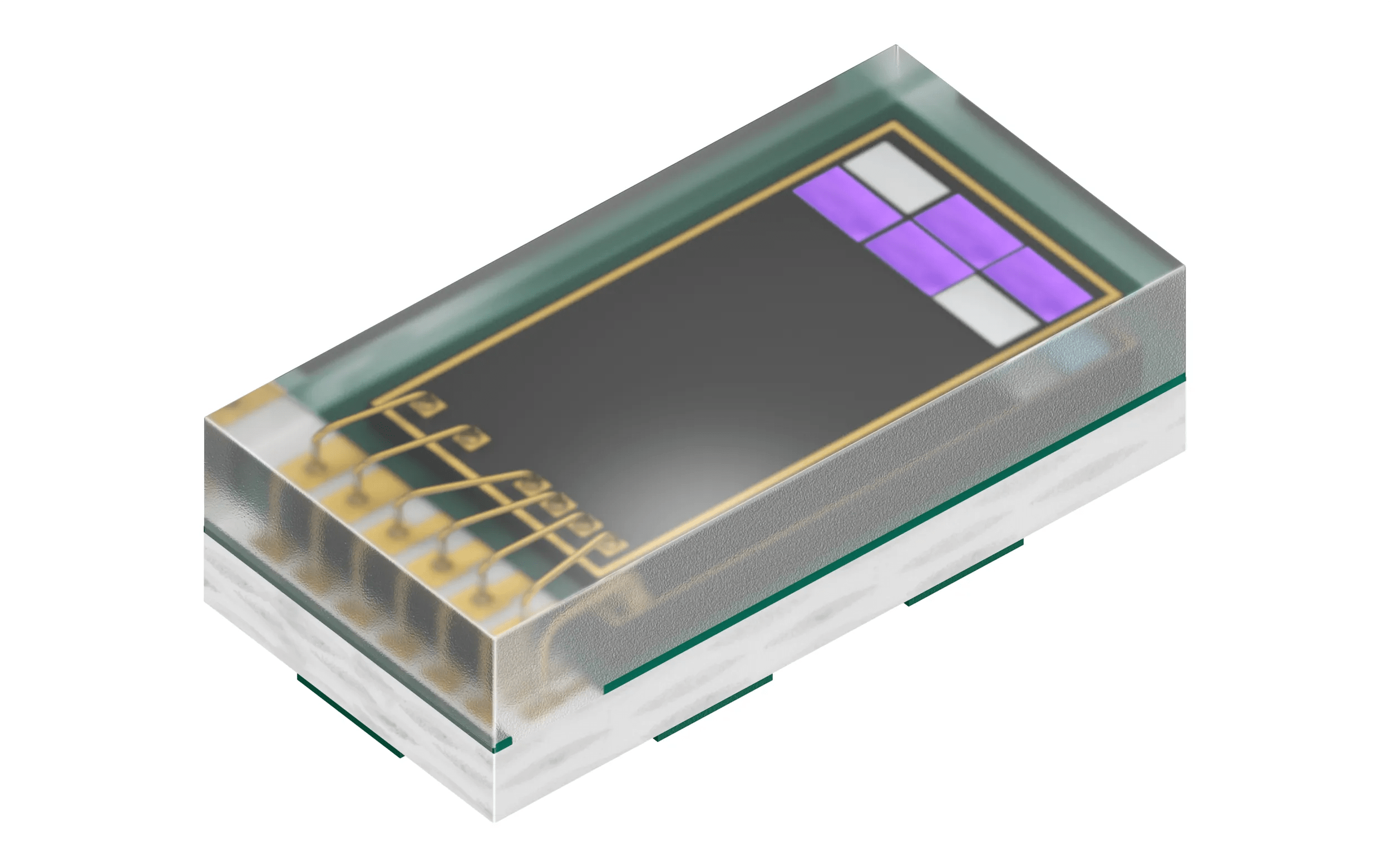

Package
OLGA
Package dimension
l
典型
2.0
mm
w
典型
1.0
mm
h
典型
0.5
mm
Input/Output Voltage
1.8 V
